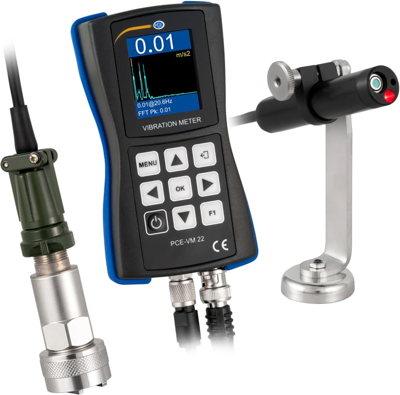

Vibration meter, PCE-VM 22, PCE Instruments

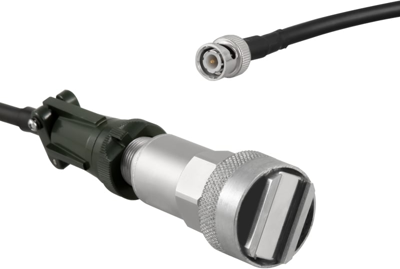

The vibration meter has a measuring range of 0 - 200 m/s² for acceleration. In addition to acceleration, the vibration meter can also measure speed, displacement, frequency and an ISO 18016-3 measurement. During the vibration measurement, an FFT view is simultaneously displayed on the vibration meter. By pressing a button, it is possible to switch from the FFT analysis to the actual wave view of the vibration. This makes it possible to analyse and evaluate a vibration even better with the vibration meter. The magnetic holder of the vibration sensor of the vibration meter is designed in such a way that it can be attached to curvatures with a minimum radius of 20 mm / 0.78".

The vibration meter has a 4 GB memory. The measurement data can then be transferred from the vibration meter to a PC. Free software is available to analyse the data. Because of its many functions, the vibration meter is a universally applicable measuring tool. Thus, the vibration meter can be used, for example, for maintenance work on generators or engines.

Features

• Infrared temperature measurement
• 4 GB data storage
• 8 hours of battery life
• Optionally with ISO calibration certificate
• FFT analysis and wave view of the vibration
