P 1575 | PeakTech
Laboratory power supply, 1 bis 32 VDC, outputs: 1 (20 A), 0 to 20 A, 640 W, 200-240 VAC, P 1575
Order No.: 24K3497
EAN: 4099891480363
MPN:
P 1575
1575
Unit Price (€ / pc.)
374.9452 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
374.95 € *
Price list
Quantity
Price per unit*
1 pcs.
374.9452 €
3 pcs.
363.6997 €
10 pcs.
351.1928 €
25 pcs.
341.8275 €
*incl. VAT plus shipping costs
**Subject to prior sale

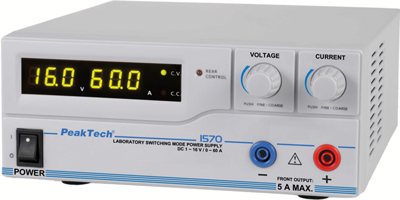

Switching mode power supplies, type PeakTech 1565/1570/1575/1580.
High degree of RF interference resistance, RF filtering. Overload, thermal overload and overvoltage protection. 3 programmable default voltage and current settings, remote control of voltage and current, output on/off signals via analog input, programmable cycle times for current/voltage output by means of the PC software, ground contact, active PFC and high energy efficiency, rotary encoder for rough and fine adjustment, 3-digit 15 mm green LED display
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 1 bis 32 VDC | |
| Output current | 20 A | |
| Width | 200 mm | |
| Input voltage AC | 200-240 VAC | |
| Height | 90 mm | |
| Power | 640 W | |
| Depth | 255 mm | |
| efficiency | 86 % | |
| Range of Output Currence | 0 bis 20 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
