P 6145 | PeakTech

Name: Laboratory power supply, 30 VDC, outputs: 2 (5 A/5 A), 0 to 5 A, 150 W, 100-120 VAC/220-240 VAC, P 6145
Brand: PeakTech
SKU: 24K3527
Price: 351.05 EUR
Availability: OutOfStock

Laboratory power supply, 30 VDC, outputs: 2 (5 A/5 A), 0 to 5 A, 150 W, 100-120 VAC/220-240 VAC, P 6145

Order No.: 24K3527

EAN: 4099891480387

MPN:

P 6145

6145

Image may differ

Key Specification:

Ausgangsspannungsbereich 30 VDC

Ausgangsstrom 5 A

Ausgangsstrom 2 5 A

Ausgangsstrombereich 0 bis 5 A

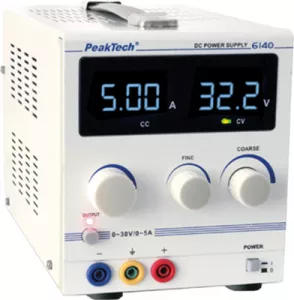

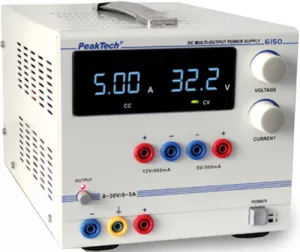

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

351.05 € *

Available: 0 pcs.

Next delivery: 1 pcs. on 2025-03-07

Leadtime: 2 Weeks **

Add to Cart

Total Price:

351.05 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

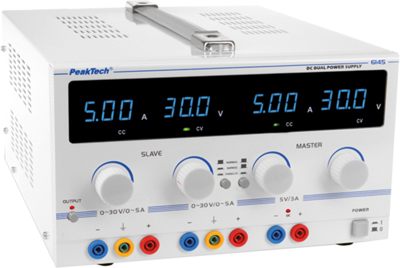

Laboratory power supplies, type PeakTech 6145.

Output voltage: 2 x 0 to 30 VDC. Output current: 2 x 0 to 5.0 ADC. Output power: 2 x 150 W. Fixed voltage output: 5.0 VDC/3.0 A, linear control, adjustable current limiting and overload protection, short circuit-proof. Residual ripple: 1.0 mVRMS/3.0 mARMS. Operating voltage, selectable: 100 to 120 V/220 to 240 V, 50/60 Hz. Safety: EN 61010-1. Dimensions: W 260, H 160, D 340 mm. Weight: 11 kg.

Type: 6145, laboratory power supply

Technical specifications

	Anzahl der Ausgänge	2
	Ausgangsspannungsbereich	30 VDC
	Ausgangsstrom	5 A
	Ausgangsstrom 2	5 A
	Breite	260 mm
	Eingangsspannungsbereich	100-120 VAC/220-240 VAC
	Höhe	160 mm
	Leistung	150 W
	Tiefe	340 mm
	Ausgangsstrombereich	0 bis 5 A
