P 6300 | PeakTech
Laboratory power supply, 15 bis 30 VDC, outputs: 2 (1.5 A), 0 to 1.5 A, 45 W, 115-230 VAC, P 6300
Order No.: 24K5655
EAN: 4099891481056
MPN:
P 6300
6300
Unit Price (€ / pc.)
184.4976 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

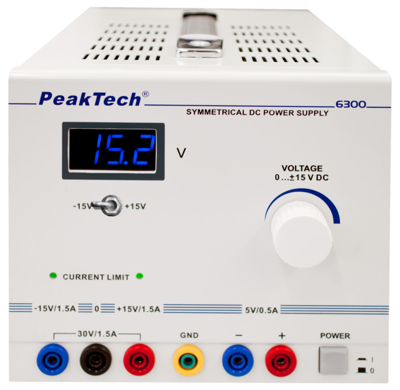

Balanced DC Power Supply, 6300, PeakTech
This new laboratory power supply for symmetrical, i.e. positive and negative output voltages, has a stepless voltage regulation. For this purpose, there are three output sockets on the front panel, whereby the middle socket acts as a center tap (0) and can output up to -15 V DC to the negative socket, or up to +15 V DC to the positive socket.
Features
- 3-digit blue LED digital display
- Stepless voltage adjustment
- Automatic overcurrent limitation
- High load stability and low ripple
Technical specifications
| Anzahl der Ausgänge | 2 | |
| Ausgangsspannungsbereich | 15 bis 30 VDC | |
| Ausgangsstrom | 1.5 A | |
| Breite | 170 mm | |
| Eingangsspannungsbereich | 115-230 VAC | |
| Höhe | 166 mm | |
| Leistung | 45 W | |
| Tiefe | 286 mm | |
| Ausgangsstrombereich | 0 bis 1,5 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
