P 1650 | PeakTech
TRMS AC/DC current clamp P 1650, 400 A (DC), 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V
Order No.: 22K7719
EAN: 4250569400377
MPN:
P 1650
1650
Unit Price (€ / pc.)
89.131 € *
Available: 0 pcs.
Next delivery: 1 pcs. on 2024-12-27
Leadtime: 2 Weeks **

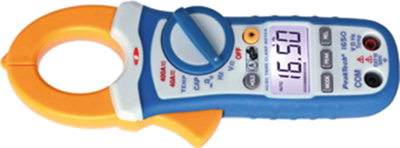

Digital-Clamp Meter, 1650, PeakTech
This Clamp meter enable contactless current measurements and features a rugged, fireproof casing. A hand guard is against accidental contact with the jaw and/or the lead inside, thus ensuring a maximum of safety for the user.
Features
- 3 3/4 digit, 12 mm LCD; max. indication: 3999, 41-segment analogue bargraph
- True RMS
- Auto ranging
- PEAK mode
- Data hold
- Backlight
- Non-contact voltage detector
- Resistance-, frequency-, capacitance- and temperature measurement
Technical specifications
| Version | AC/DC current clamp | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 40 Hz | |
| max. measured current value (AC) | 400 A | |
| max. measured current value (DC) | 400 A | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 10 Hz | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V | |
| Pliers opening | 30 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
