P 3131 | PeakTech

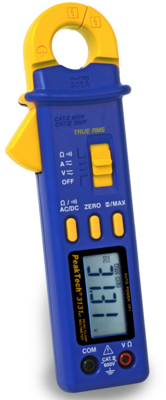

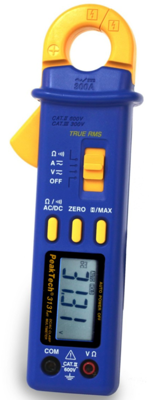

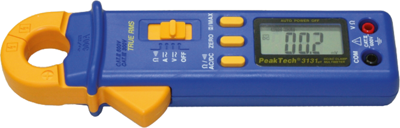

Name: TRMS AC/DC current clamp P 3131, 300 A (DC), 300 A (AC), 600 V (DC), 600 V (AC), opening 22 mm, CAT II 600 V
Brand: PeakTech
SKU: 22K7690
Price: 157.08 EUR
Availability: InStock

TRMS AC/DC current clamp P 3131, 300 A (DC), 300 A (AC), 600 V (DC), 600 V (AC), opening 22 mm, CAT II 600 V

Order No.: 22K7690

EAN: 4250569400650

MPN:

P 3131

3131

Image may differ

Key Specification:

Ausführung AC/DC-Stromzange

Echteffektivwertmessung (TRMS) möglich Yes

Zangenöffnung 22 mm

Überspannungskategorie CAT II 600 V

max. Strommesswert (bei DC) 300 A

Download Datasheet Technical specifications

Unit Price (€ / pc.)

157.08 € *

Available: 2 pcs.

Leadtime: 2 Weeks **

Total Price:

157.08 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Digital Clamp Meter, 3131EFF, PeakTech

This clamp meter can measure currents without contact, while additional measurement functions for DC and AC- voltage plus resistance with continuity test are possible. The measured TrueRMS value is displayed on the 3 3/4-digits LCD display with. Furthermore, this unit features a sturdy, unbreakable and fireproof casing. A hand guard against accidental contact with the jaw and the lead inside provides a maximum of safety for the user.

Features

3 ¾ digit, 13 mm LCD Display, max. indication: 3999
10 mA resolution
ACA/DCA Measurements up to 300 A
True rms measurements
Continuity beeper
Data hold and max. hold function
Auto ranging
Auto power off selectable
Max. conductor size: 22 mm

Technical specifications

	Ausführung	AC/DC-Stromzange
	Echteffektivwertmessung (TRMS) möglich	Yes
	max. Strommesswert (bei AC)	300 A
	max. Strommesswert (bei DC)	300 A
	max. Widerstandsmessbereich	40 MΩ
	Spannungsmessbereich (AC)	600 V
	Spannungsmessbereich (DC)	600 V
	Überspannungskategorie	CAT II 600 V
	Zangenöffnung	22 mm
