P 4350 | PeakTech

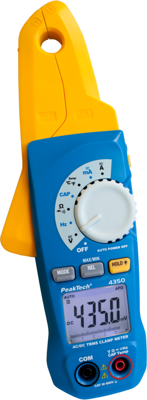

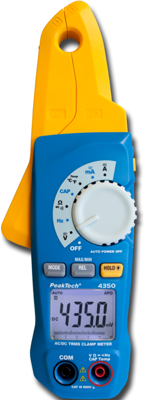

TRMS AC/DC current clamp P 4350, 80 A (DC), 80 A (AC), 600 V (DC), 600 V (AC), opening 17 mm, CAT III 600 V
AC/DC current clamp Meter, 4350, PeakTech
This newly developed power clamp meter in the most modern design is suitable for small cable diameters up to 12 mm, leakage currents up to 5 A in high-precision resolution of 1 mA and also currents up to 80 A with 100 mA resolution. Furthermore, this device is topped by its exact measurement functions for voltage, current, capacitance, resistance and frequency measurements, as well as a temperature measurement with the enclosed K-Type probe. In addition to the measurement features, the device also offers function keys for minimum and maximum value display, a data hold function and a switchable LED flashlight for the measuring area. Through this and also the True RMS measurement, this device is the perfect tool for every electrician in the energy and building sector and other service technicians in the wide range of electronics.
Features
- Integrated LED light
- Measured value HOLD
- MIN/MAX function
- Continuity check and diode test
- Auto-Off
| Ausführung | AC/DC-Stromzange | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Messwert (Frequenz) | 10 MHz | |
| max. Strommesswert (bei AC) | 80 A | |
| max. Strommesswert (bei DC) | 80 A | |
| max. Widerstandsmessbereich | 50 MΩ | |
| min. Messwert (Frequenz) | 5 Hz | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V | |
| Zangenöffnung | 17 mm |
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
