P 9035 | PeakTech
Power consumption meter, 0.1 W resolution, 200-276 V, 0-3680 W, 0-9999.9 kWh, 45-65 Hz, (L x W x H) 75 x 120 x 60 mm, P 9035
Order No.: 24K2229
EAN: 4250569402302
MPN:
P 9035
9035
Unit Price (€ / pc.)
17.017 € *
Available: 2 pcs.
Leadtime: 2 Weeks **

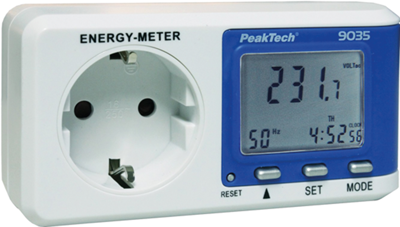

Power consumption meters, type PeakTech 9035.
For measuring energy consumption/costs, line voltage/frequency, load current, power factor calculation. With integrated accumulator for memory backup. Selectable day and night tariff; Display: maximum consumption with trigger time, time of day, weekday, load time. Current display: 0.005 A to 16 A. Watt display range: max. 3680 W. Consumption display: max. 9999.9 kWh. Resolution: 0,005 A. Tolerance: ±0.5 %. Safety: GS, EN 61010-1, CAT II 300 V. Dimensions: 120 x 60 x 75 mm. Weight: 160 g.
Type: 9035, power consumption meter
Technical specifications
| Product type | Leistungsverbrauchs-Messgerät | |
| Version | 0,1 W Auflösung | |
| measurement range | 200-276 V, 0-3680 W, 0-9999,9 kWh, 45-65 Hz | |
| Length | 75 mm | |
| Width | 120 mm | |
| Height | 60 mm | |
| Weight | 160 g |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90283011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
