Digital display instrument, LDP-335
Digital display instruments, type PeakTech LDP-.
Can be operated as voltmeter or ammeter with input sensitivity of 200 mV, 3 1/2-digit LED display or LCD, with or without backlight, adjustable decimal point; Measuring principle: high and low signal edge ADC. Measuring voltage isolated from the operating voltage, no galvanic isolation. Input voltage: 199.9 mV DC. Display: max. 1999, with automatic polarity display. Tolerance: ±0.5% (+23 °C). Input resistance: >100 Mohm. Overrange display with a "1" in the display field. Decimal point: selectable with jumper. Measuring rate: 2 to 3 measurements per second. Installation: snap-in.
LCD, digit height 8.0 mm, type LDP-335/340 LCD.

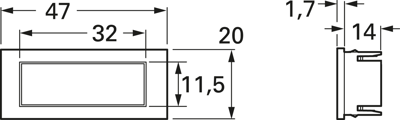

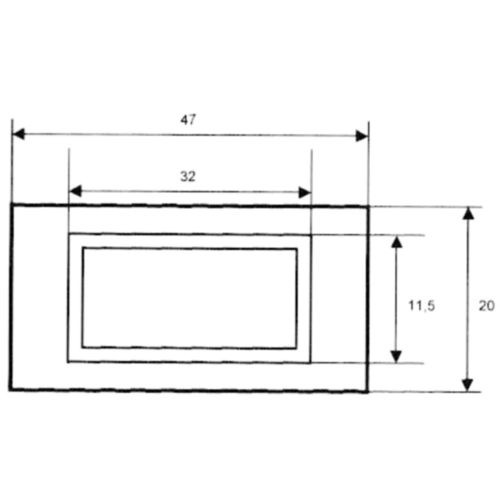

Operating voltage: 9.0 VDC. Power loss: 1.0 mA. Dimensions: 47 x 20 x 16 mm. Front-panel cutout: 43 x 19 mm.
Type: LDP–335 LCD, not backlit
| Breite des Ausschnitts | 43 mm | |
| Einbautiefe | 16 mm | |
| Frequenzmessung | No | |
| Höhe des Ausschnitts | 19 mm | |
| max. Spannung | 9 V | |
| max. Strom | 1 mA | |
| Montage | Einbaumontage | |
| Regelausgang | No | |
| Spannung | 7-12 VDC |
| Ursprungsland | CN |
| Zolltarifnummer | 90303370 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
