P 1075 | PeakTech

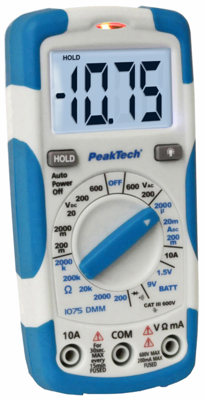

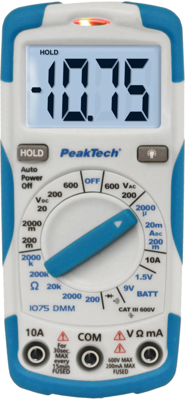

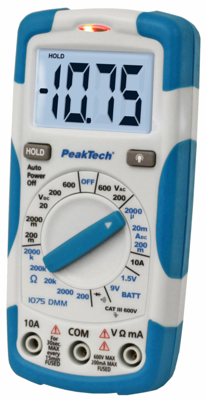

Name: Digital multimeter P 1075, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, CAT III 600 V
Brand: PeakTech
SKU: 21K492
Price: 30.46 EUR
Availability: OutOfStock

Digital multimeter P 1075, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, CAT III 600 V

Order No.: 21K492

EAN: 4250569400117

MPN:

P 1075

1075

Image may differ

Key Specification:

Version digital multimeter

TRMS possible No

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 600 V

Ordering Information:

Supplied with test leads, case, battery (9.0 V) and operating instructions

Download Datasheet Technical specifications

Unit Price (€ / pc.)

30.4640 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

30.46 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Digital multimeters, type PeakTech 1075.

Measure value HOLD function, diode test /continuity check / battery test, Auto-Off, 20 mm LCD, 3 1/2stellig; DC voltage: 600 V resolution 0.1 mV. AC voltage: 600 V, resolution 0.1 V. DC current: 10 A, resolution 1.0 µA. Resistance: 2.0 Mohm, resolution 0.1 ohm. Operating voltage: 9.0 VDC. Safety: EN 61010-1, Cat. III 600 V. Dimensions: 65 x 140 x 40 mm. Weight: 210 g. Supplied with bag, test leads, 9.0 V battery, and operating instructions.

Type: 1075, digital multimeter

Technical specifications

	Display Digits	1999
	Version	digital multimeter
	TRMS possible	No
	max. measured current value (AC)	10 A
	max. measured current value (DC)	10 A
	max. resistance range	2 MΩ
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 600 V
