P 2025 A | PeakTech

Name: Digital multimeter P 2025 A, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 40 nF to 200 µF, CAT III 600 V
Brand: PeakTech
SKU: 21K481
Price: 64.14 EUR
Availability: InStock

Digital multimeter P 2025 A, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 40 nF to 200 µF, CAT III 600 V

Order No.: 21K481

EAN: 4099891456023

MPN:

P 2025 A

2025 A

Image may differ

Key Specification:

Version digital multimeter

TRMS possible No

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 600 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

64.1410 € *

Available: 1 pcs.

Leadtime: 2 Weeks **

Total Price:

64.14 € *

Price list

Quantity

Price per unit*

1 pcs.

64.1410 €

10 pcs.

59.4881 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

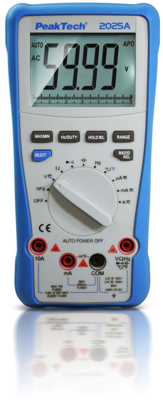

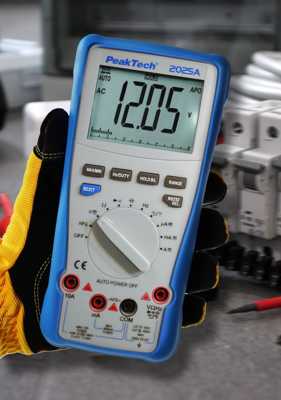

Digital multimeters, type PeakTech 2025.

The new PeakTech 2025 A offers a multitude of measurement functions for electrical measured variables for every user from industry, craftsmanship, training, hobby and the laboratory. The integrated data interface, which enables this model to record long-term data in conjunction with the PC software, should be emphasized here. It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating and a tilt stand on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these. The device is working with a battery and has an LCD screen with a character height of 27 mm and a bar graph with 61 segments. The automatic range selection offers a very user-friendly operation and measured values can be easily read on the illuminated display. Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.

Technical specifications

	Display Digits	6000
	Version	digital multimeter
	TRMS possible	No
	Capacity range	40 nF to 200 µF
	max. measured current value (AC)	10 A
	max. measured current value (DC)	10 A
	max. resistance range	60 MΩ
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT III 600 V
