P 3320 | PeakTech

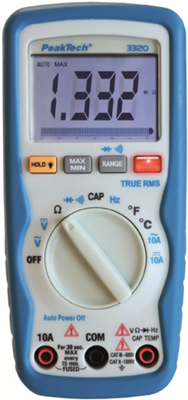

TRMS digital multimeter P 3320, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 4 nF to 4 mF, CAT II 1000 V, CAT III 600 V
Digital/analog multimeters, type PeakTech 3320.
Features: TRMS AC and DC voltage/current measurements, non-contact voltage detector, continuity check and diode test, MIN/MAX/HOLD function, auto-ranging, manual range selection, working cycle, Auto-Off. LCD: 3 5/6 digits, 20 mm, blue backlight, 61-segment analog bar graph. DC voltage: 600 mV, 6.0/60/600 V, resolution/tolerance 0.1 mV/±0.5%. AC voltage: 6.0/60/600 V, resolution/tolerance 1.0 mV/±1.5%. DC current: 6.0/10 A. Resolution/tolerance: 1.0 mA/±2.5 %. AC current: 6.0/10 A, 1.0 mA, ±3.0 %. Resistance: 600 ohm, 6.0/60/600 kohm, 6.0/60 Mohm, resolution/tolerance 0.1 ohm/±1.0 %. Capacitance: 40/400 nF, 4.0/40/400/4000 µF, resolution/tolerance 10 pF/±5.0 %. Frequency: 10/100 Hz, 1.0/10/100 kHz, 1.0/10 MHz, resolution/tolerance 0.001 Hz/±1.2%. Working cycle: 0.1 to 100 %, resolution/tolerance 0.1%/±1.2%. Temperatures: –20 to +760 °C, resolution/tolerance 1.0 °C/±3.0 %. Operating voltage: 9.0 V battery. Dimensions (W x H x D): 70 x 150 x 48 mm. Weight: 260 g. Safety: IEC-1010-1, CAT III 600 V. Supplied with carrying bag, test leads, thermocouple type K, 9.0 V battery and operating instructions.
Type: 3320, digital multimeter
| Anzeige Digits | 6000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 4 nF bis 4 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT II 1000 V, CAT III 600 V |
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
