P 3335 | PeakTech
Digital multimeter P 3335, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 pF to 200 µF, CAT III 600 V
Order No.: 21K477
EAN: 4250569400834
MPN:
P 3335
3335
Unit Price (€ / pc.)
52.0744 € *
Available: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
52.07 € *
Price list
Quantity
Price per unit*
1 pcs.
52.0744 €
5 pcs.
48.9566 €
15 pcs.
47.0764 €
50 pcs.
44.9939 €
*incl. VAT plus shipping costs
**Subject to prior sale

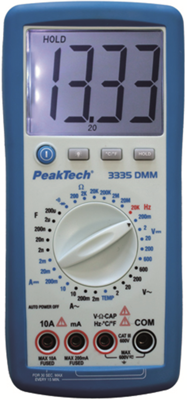

Digital multimeters, type PeakTech 3335.
With 3 1/2-digit LCD of 37 mm height. Mechanical jack lock, Auto-Off, manual range selection, Data Hold function, continuity check and diode test; 5 x DC voltage: 200 mV to 600 V/0.5%. 4 x AC voltage: 2.0 V to 600 V, tolerance 1.0 %. 4 x DC current: 2.0 mA to 20 A, tolerance 1.0 %. 4 x AC current: 2.0 mA to 20 A, tolerance 1.2%. 6 x resistance: 200 ohm to 20 Mohm, tolerance 1.0 %. 5 x capacitance: 2.0 nF to 200 µF, tolerance 4.0 %. Frequency: up to 20 kHz, tolerance 1.5%. Temperature: –20 to +760 °C, tolerance 3.0 %. Safety: IEC-1010-1, CAT III 600 V. Dimensions: W 92, H 195, D 38 mm. Supplied with thermocouple type K, batteries and test leads.
Type: 3335, digital multimeter
Technical specifications
| Anzeige Digits | 2000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | No | |
| Kapazitätsbereich | 1 pF bis 200 µF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 20 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
