P 3355 | PeakTech
Digital multimeter P 3355, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 4 nF to 200 µF, CAT II 600 V, CAT III 300 V
Order No.: 21K488
EAN: 4250569400858
MPN:
P 3355
3355
Unit Price (€ / pc.)
71.281 € *
Available: 4 pcs.
Leadtime: 2 Weeks **
Total Price:
71.28 € *
Price list
Quantity
Price per unit*
1 pcs.
71.281 €
5 pcs.
67.235 €
*incl. VAT plus shipping costs
**Subject to prior sale

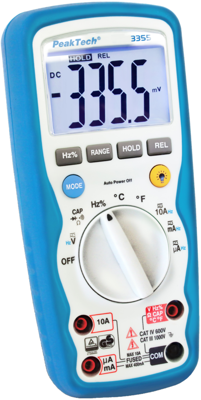

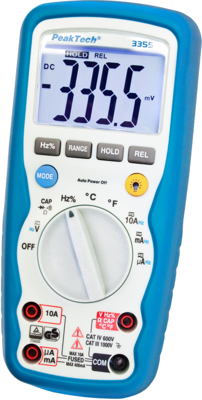

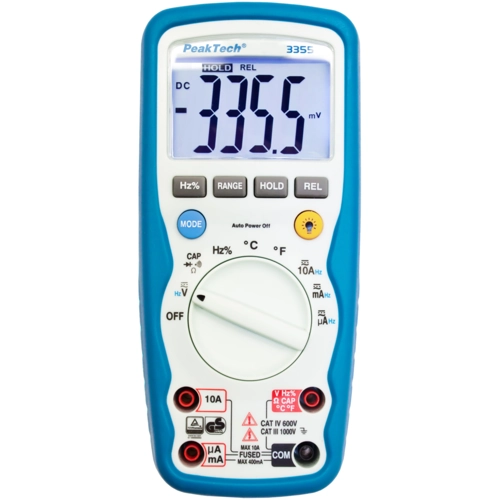

Digital multimeters, type PeakTech 3355.
With 27 mm LCD, 3 3/4-digit, blue backlight; Features: relative value measuring function, auto-ranging and manual range selection, Auto-Off, continuity check and diode test, HOLD function. Safety: IEC-1010-1, CAT III 1000 V/CAT IV 600 V. Degree of protection: IP 67. DC current: to 10 A (±1.0 %). AC current: to 10 A (±1.5%). DC voltage: to 1000 V (±0.5%). AC voltage: to 1000 V (±1.2%). Resistance: to 40 Mohm (±1.0 %). Capacitance: to 200 µF (±3.0 %). Frequency: to 10 MHz (±1.2 %). Temperature: –20 to +760 °C (±3.0 %). Supplied with block battery, thermocouple type K, protective bag and test leads. Dimensions: 85 x 185 x 55 mm. Weight: 400 g.
Type: 3355, digital multimeter
Technical specifications
| Anzeige Digits | 4000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | No | |
| Kapazitätsbereich | 4 nF bis 200 µF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT II 600 V, CAT III 300 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
