P 3440 | PeakTech

Name: Color graphics multimeter P 3440, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 5 nF to 10 mF, CAT III 1000 V, CAT IV 600 V
Brand: PeakTech
SKU: 21K531
Price: 213.01 EUR
Availability: InStock

Color graphics multimeter P 3440, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 5 nF to 10 mF, CAT III 1000 V, CAT IV 600 V

Order No.: 21K531

EAN: 4250569403064

MPN:

P 3440

3440

Image may differ

Key Specification:

Ausführung Digital-Multimeter

Echteffektivwertmessung (TRMS) möglich No

max. Strommesswert (bei DC) 10 A

max. Strommesswert (bei AC) 10 A

Spannungsmessbereich (DC) 1000 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

213.01 € *

Available: 1 pcs.

Leadtime: 2 Weeks **

Total Price:

213.01 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

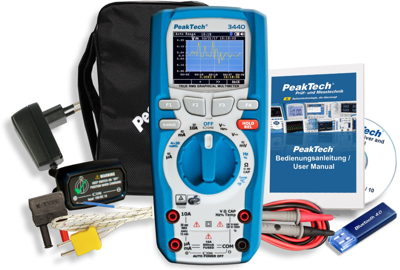

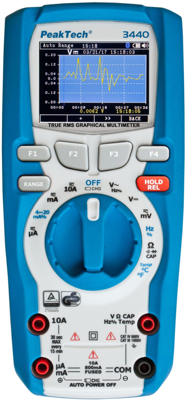

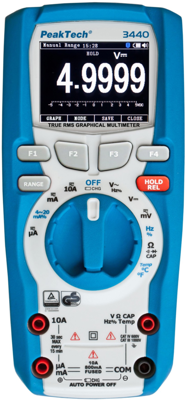

Graphic multimeterPeakTech 3440

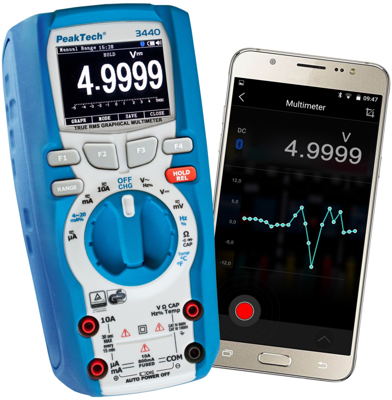

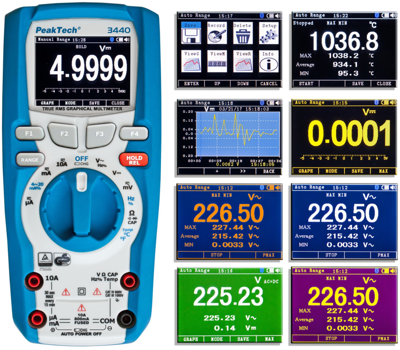

Backlit TFT display, Bluetooth interface for data transfer to Smartphones by means of Android or iOS App, 4 5/6-digit measured value display, 5.6 cm (2.2") display. Data logger function with trend visualization, internal memory for 10000 measured values (data logger 20000)

DC voltage: 1000 V, ±0.05 %

AC voltage: 1000 V, ±0.5 %

DC current: 10 A, ±0.2 %

AC current: 10 A, ±0.8 %

Resistance: 50 Mohm, ±0.2 %

Capacitance: 10 mF, ±1.0 %

Temperatures: - 100 to +1350 °C, ±1.0 %

Safety: EN 61010-1, CAT III 1000 V, CAT IV 600 V

Dimensions: 175 x 80 x 50 mm

Weight: 400 g

Technical specifications

	Anzeige Digits	49999
	Ausführung	Digital-Multimeter
	Echteffektivwertmessung (TRMS) möglich	No
	Kapazitätsbereich	5 nF bis 10 mF
	max. Strommesswert (bei AC)	10 A
	max. Strommesswert (bei DC)	10 A
	max. Widerstandsmessbereich	50 MΩ
	Spannungsmessbereich (AC)	1000 V
	Spannungsmessbereich (DC)	1000 V
	Überspannungskategorie	CAT III 1000 V, CAT IV 600 V
