P 3442 | PeakTech

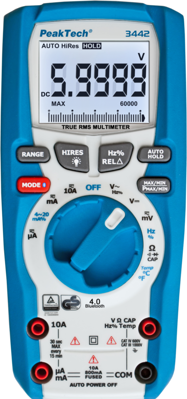

TRMS digital multimeter P 3442, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 60 nF to 6 mF, CAT III 1000 V, CAT IV 600 V
The new PeakTech 3442 is a new digital multimeter for heavy duty use with a high variety of useful measurement functions.
By keystroke, the display of the device can be switched between 3 5/6-digit LCD and a high resolution 4 5/6-digit LCD, whereas all measurements are gathered as True RMS values. In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this new developed device has a 4-20 mA% current loop measurement, low-pass filter and an Auto-Hold function, among many other things.
Through these many technical qualities, this device is suitable for the daily use of every electrician, technician and engineer in the service, construction or industrial sector.
•Bluetooth 4.0 interface for data transfer to Android smartphones
•Windows software for data transmission and remote control
•4 5/6-digits measurement value display (max. 59999)
•LCD-Display with Relative-value measurement
•42-segment bargraph
•True RMS measurement
•Continuity and diode-test
•Auto-Hold, Min, Max and AVG function
•4-20mA% current loop measurement
•Duty Cycle (Hz / %)
•Low Pass filter function
•Safety: EN 61010-1, CAT III 1000 V / CAT IV 600 V, TÜV/GS
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 60 nF bis 6 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | CN |
| Zolltarifnummer | 90303100 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
