P 3454 | PeakTech

TRMS digital multimeter P 3454, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 10 mF, CAT III 1000 V, CAT IV 600 V

Order No.: 24K4455
EAN: 4250569407888
MPN:
P 3454
3454
PeakTech
P 3454 PeakTech Multimeters
Image may differ
Unit Price (€ / pc.)
201.11 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
201.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
201.11 €

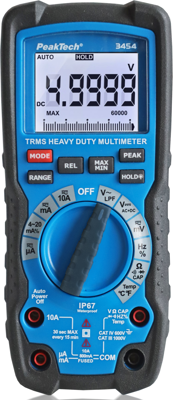

Heavy Duty Multimeter, P 3454, PeakTech

The PeakTech 3454 is a robust digital multimeter with a 50,000- count LCD display in a heavy-duty housing design! Thanks to its IP67 waterproof rating, this multimeter can withstand the harshest conditions and is also impact-resistant due to its robust housing. With a measuring category of 1000V CAT III and 600V CAT IV, this multimeter offers the highest level of security for your professional measurements. In addition to all the standard functions for current, voltage, resistance, capacitance, temperature and frequency, this model offers even more useful functions, such as a low-pass filter, AC + DC measurements, 4 ~ 20mA%, max, min and AVG measurements.

This multimeter has been developed with an ergonomic design that prioritizes comfort and ease of use. A particularly practical feature of this model is the replaceable and rechargeable Li-Ion battery, which ensures a particularly long runtime compared to conventional batteries. This new development meets the highest demands for your most challenging measurement tasks.

Features

  • Display (LCD) with 50.000 digits
  • Maximum value, minimum value and average function
  • Waterproof (IP67) outdoor housing (2m drop test)
  • Safety: IP67, EN 61010-1, CAT III 1000 V / CAT IV 600V
Technical specifications
Display Digits 50000
Version digital multimeter
TRMS possible Yes
Capacity range 10 mF
max. measured current value (AC) 10 A
max. measured current value (DC) 10 A
max. resistance range 50 MΩ
max. voltage measuring range (AC) 1000 V
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT III 1000 V, CAT IV 600 V
Logistics
Country of origin CN
Customs tariff number 90303100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
