P 3690 | PeakTech
Digital multimeter P 3690, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 50 nF to 100 µF, CAT III 600 V
Order No.: 24K5591
EAN: 4099891456542
MPN:
P 3690
3690
Unit Price (€ / pc.)
87.2746 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

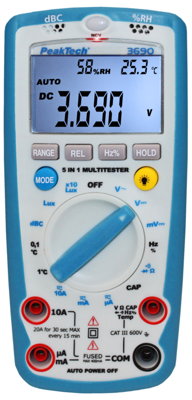

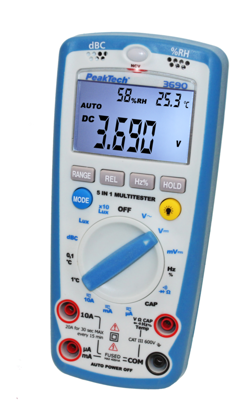

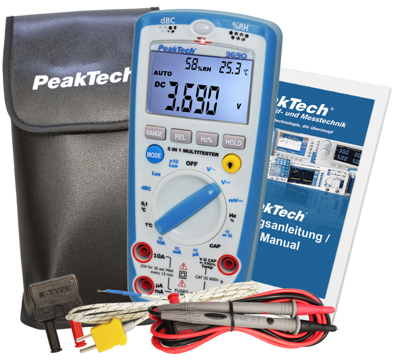

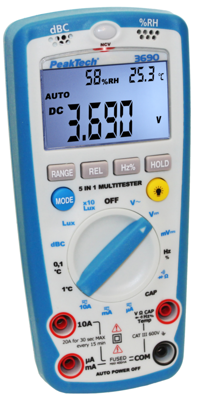

Multi-Tester, 3690, PeakTech
This highly accurate "5 in 1" digital multitester is designed to combine the environmental measurement functions of sound level, illuminance, humidity and temperature with the measurement functions of a multimeter.
Features
- 3 4/5 digit display, max 4000
- The sound level function is suitable for measurement in factories, schools, offices, airports, as well as for testing acoustics in studios, lecture halls and hi-fi systems
- Illuminance function measures lighting conditions, including outdoors, with full cosine correction for oblique light incidence
- Humidity and temperature measurement function is suitable for measuring ambient temperature and humidity, as well as determining the temperature of objects.
- The digital multimeter allows measurements of AC/DC voltage and current, resistance, frequency, duty cycle, capacitance, continuity and diode test
Technical specifications
| Version | Digital-Multimeter | |
| TRMS possible | No | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Capacity range | 50 nF bis 100 µF | |
| max. resistance range | 40 MΩ | |
| Surge voltage category | CAT III 600 V | |
| Display Digits | 4000 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
