P 4095 | PeakTech
TRMS digital bench multimeter P 4095, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 2 nF to 10000 µF, CAT I 1000 V, CAT II 600 V
Order No.: 27K1046
EAN: 4099891456719
MPN:
P 4095
4095
Unit Price (€ / pc.)
544.9962 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

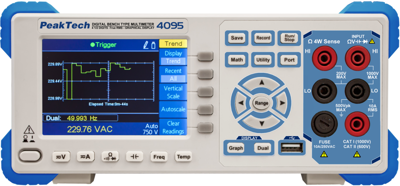

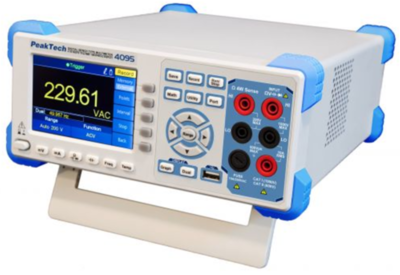

Graphical Bench Multimeter, 4095, PeakTech

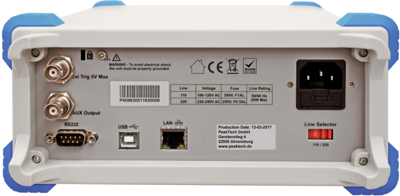

Newly developed precision bench multimeter with TFT graphics-display for high-resolution presentation of the measured values, curves, functional diagrams and many more, up to 150 measurements / second. This model is equipped with a variety of special features such as dual measurement of two different measurement functions, internal or external data logger, histogram, dB, pass/fail, thermal resistors or thermocouple - Measurements, curves, function graphs, average views or bar graphs. The versatile functions are complemented by True RMS measurements up to 100kHz. For control via software or via SCPI protocol, the model has USB-, RS-232 or a LAN interface for the network connection.
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Digitales Tisch-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 2 nF bis 10000 µF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 100 MΩ | |
| Spannungsmessbereich (AC) | 750 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT I 1000 V, CAT II 600 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
