P 1240 | PeakTech

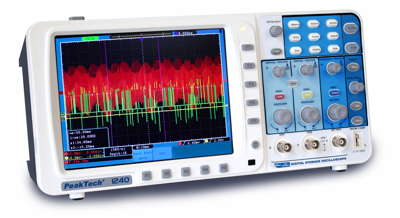

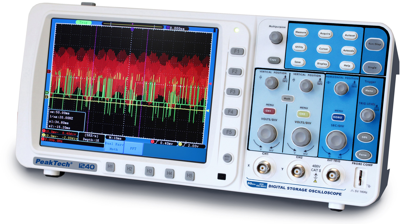

2-channel oscilloscope P 1240, 60 MHz, 200 MSa/s, 8" TFT, 5.8 ns
Order No.: 20K640
EAN: 4099891458690
MPN:
P 1240
1240
Unit Price (€ / pc.)
544.9962 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Digital storage oscilloscopes, type PeakTech 12.
2-channel oscilloscope with 20 automatic measuring functions; Measuring mode: standard/peak detection/average. Trigger mode: Edge/Video/Pulse/Slope. Trigger coupling: DC, AC, LF, RF. Color display (800 x 600 pixels). Operating voltage: 100 to 240 VAC/50 Hz. Safety: EN 61010-1, CAT II. Dimensions: 340 x 155 x 70 mm. Accessories included: 2 probes, 2 BNC cable, USB cable, power cable, software CD for Windows, carrying bag and operating instructions.
Technical attributes (type, bandwidth, sampling rate, max. rise time): 1240, 60 MHz, 250 MSa/s, 5.8 ns
Technical specifications
| Abtastrate | 200 MSa/s | |
| Anstiegszeit | 5.8 s | |
| Anzahl der Kanäle | 2 | |
| Anzeige | 8" TFT | |
| Ausführung | Speicheroszilloskop | |
| Bandbreite | 60 MHz | |
| Breite | 340 mm | |
| Gewicht | 1.8 kg | |
| Höhe | 155 mm | |
| Kategorie | Cat II | |
| Länge | 70 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90302000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
