KL 1 SCHWARZ | Peiker
Small speaker, 4 Ω, 82 dB, 300 to 900 Hz, black, KL 1 SCHWARZ
Order No.: 42M350
EAN: 4099891542832
MPN:
KL 1 SCHWARZ
Unit Price (€ / pc.)
76.0886 € *
Available: 13 pcs.
Leadtime: 5 Weeks **
Total Price:
76.09 € *
Price list
Quantity
Price per unit*
1 pcs.
76.0886 €
5 pcs.
71.3286 €
10 pcs.
68.9486 €
*incl. VAT plus shipping costs
**Subject to prior sale

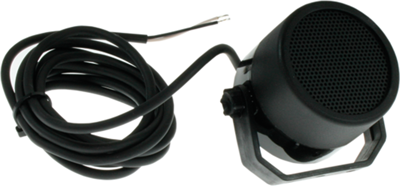

Small speakers, type Peiker KL 1.
Dynamic, small version for mobile and stationary radio systems, primarily for voice transmission. The compact housing is made of impact-resistant plastic with a finely perforated metal front screen and an elastic holding bar; Bandwidth: 300 to 9000 Hz. Rated impedance: 4.0 ohm. Rated load: 5.0 W to DIN 45573. Can be used as a microphone with spherical characteristics in intercom mode (approx. value 0.14 mV/µbar sensitivity at 1000 Hz and 4.0 ohm impedance). Dimensions: 51 x 58 mm. The speaker has a permanently installed 3.0 m cable.
Type: KL 1, speaker, black
Technical specifications
| Version | small speaker | |
| Colour | black | |
| Impedance | 4 Ω | |
| Max. transmission range | 900 Hz | |
| min. transmission range | 300 Hz | |
| Resonance frequency | 300 Hz | |
| Sound pressure level | 82 db |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85182100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
