187548 | PEPPERL+FUCHS

Inductive sensor, PNP, surface mounting, flush, antivalent, 20 mA, 187548

Order No.: 28G1019
EAN: 4099889447170
MPN:
187548
NBB20-L2-A2-V1
Series: NBB
187548 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1
187548 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
72.2568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
72.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
72.2568 €

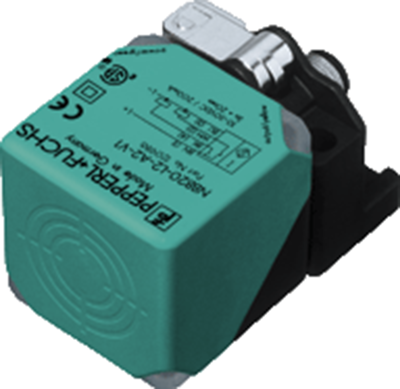

Inductive sensor, 187548, PEPPERL+FUCHS

The inductive sensor features a bidirectional and rotatable sensor head, measuring 20 mm and designed for flush installation. It operates on a 4-wire DC system and includes a quick mounting bracket, along with four LED indicators for enhanced 360° visibility.

Technical specifications
Connection M12-Steckverbinder
Version PNP
Detecting distance 20 mm
Length 67 mm
Assembly Aufbaumontage, bündig
Product type Induktiver Sensor
Latching switching function Antivalent
switching current 20 mA
Degree of protection (IP) IP68/IP69K
Logistics
Country of origin VN
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
