87739 | PEPPERL+FUCHS
Proximity switch, built-in mounting M12, 1 Form A (N/O), 30 V (DC), 15 mA, Detection range 4 mm, 87739
Unit Price (€ / pc.)
140.2415 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
140.24 € *
Price list
Quantity
Price per unit*
1 pcs.
140.2415 €
2 pcs.
131.8163 €
5 pcs.
123.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale

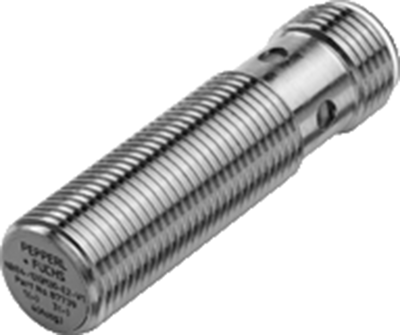

Inductive sensor, 87739, PEPPERL+FUCHS
The inductive sensor features a 4 mm flush design and offers an extended operating distance.
Technical specifications
| Connection | M12-connector | |
| Version | inductive sensor | |
| diameter | 12 mm | |
| Detection range | 4 mm | |
| Length | 44.5 mm | |
| Assembly | built-in mounting M12 | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 30 V | |
| switching current | 15 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride |
