NXB4-12GM50--E2 | PEPPERL+FUCHS

Proximity switch, built-in mounting M12, 1 Form A (N/O), 100 mA, Detection range 4 mm, NXB4-12GM50--E2

Order No.: 28G1084
EAN: 4099889447286
MPN:
NXB4-12GM50--E2
Series: NXB
PEPPERL+FUCHS

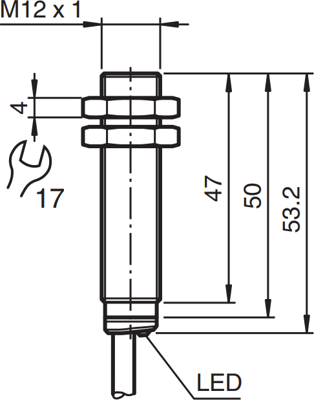

NXB4-12GM50--E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1

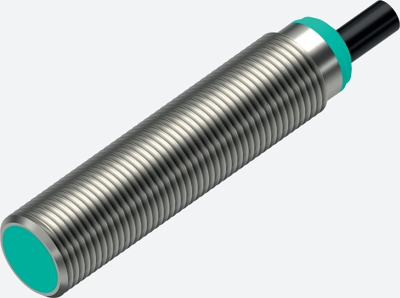

NXB4-12GM50--E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
52.4552 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
52.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
52.4552 €

Inductive sensor, NXB4-12GM50--E2, PEPPERL+FUCHS

The inductive sensor features a 4 mm flush design, allowing for flexible application and a variety of mounting options.

Technical specifications
Connection stranded wires
Version inductive sensor
diameter 12 mm
Detection range 4 mm
Length 53.2 mm
Assembly built-in mounting M12
Latching switching function 1 Form A (N/O)
switching current 100 mA
Degree of protection (IP) IP67
Logistics
Country of origin VN
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
