20700.40005 | Peter Electronic

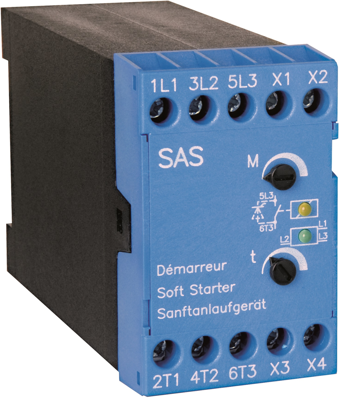

Soft starter SAS 5.5 from Peter Electronic

Single-phase soft start.

- rail mount

- 2 separately programmable parameters (startup torque, startup time)

- control contact for pole-changing motors

- selectable voltage from 400 V to 230 V

For motors with rated power of 3.0 kW/230 V and 5.5 kW/400 V

Mains/motor voltage w. bridged X1-X2: 160 to 240 V/±10 %

Mains/motor voltage w. open X1-X2: 380 to 480 V/±10 %

Line frequency: 50/60 Hz

Motor load: at least 10 % of the rated power

Initial torque: 0 to + 50 %

Startup time: 0.5 to 5.0 s

Degree of protection: IP 20

Operating temperatures: 0 to +45 °C

Rated current: 12 A

Switching rate: 200/h
