1074947 | Phoenix Contact

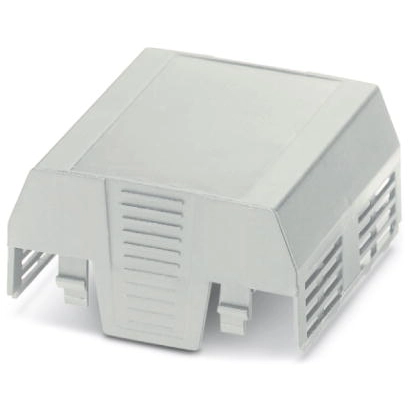

Upper part of housing, ABS/PC, (W x H x D) 67.6 x 74.65 x 36.95 mm, light gray, for enclosure, 1074947
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: On Request **
Upper part of housing, 1074947, Phoenix Contact
DIN rail housing, Upper housing part, Flat design, No connection opening, Width: 67.6 mm, Height: 74.65 mm, Depth: 36.95 mm, Color: light grey (7035).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
- Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
| Befestigungsart | Snap-in | |
| Breite | 67.6 mm | |
| Farbe | lichtgrau | |
| Geeignet für | Gehäuse | |
| Höhe | 74.65 mm | |
| Material | ABS/PC | |
| Schutzart (IP) | IP20 | |
| Tiefe | 36.95 mm | |
| Zubehörart | Gehäuseoberteil |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
