2200923 | Phoenix Contact
Surface mount housing lower part, aluminum, (L x W x H x D) 235 x 75 x 29.4 x 29.4 mm, silver, for enclosure, 2200923
Unit Price (€ / pc.)
24.3593 € *
Available: 0 pcs.
Available in 10 days: 18 pcs.
Leadtime: 1 Week **

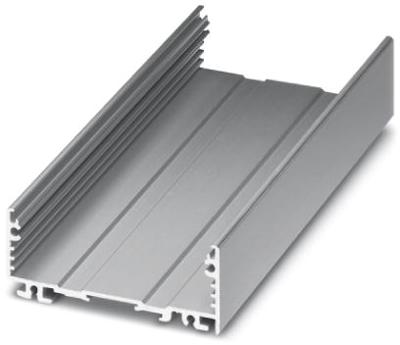

Profile, 2200923, Phoenix Contact
Press-drawn section housing, Screw mounting, Basic profile, Color: aluminum color, Profile width (internal): 72 mm, Profile width (external): 75 mm, Length: 235 mm, Depth: 29.4 mm.
Features
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- EMC protection
Technical specifications
| Befestigungsart | Schraube | |
| Breite | 75 mm | |
| Farbe | silber | |
| Geeignet für | Gehäuse | |
| Höhe | 29.4 mm | |
| Länge | 235 mm | |
| Material | Aluminium | |
| Produkt-Art | Aufbaugehäuse Unterteil | |
| Schutzart (IP) | IP40 | |
| Tiefe | 29.4 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 76042990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
