Upper part of housing, ABS, (W x H x D) 22.6 x 75.26 x 36.95 mm, black, for enclosure, 2201254
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Available in 10 days: 624 pcs.
Leadtime: 2 Weeks **

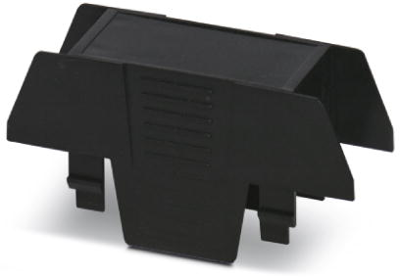

Upper part of housing, 2201254, Phoenix Contact
DIN rail housing, Upper housing part, Tall design, Connection opening on both sides, Width: 22.6 mm, Height: 75.26 mm, Depth: 36.95 mm, Color: black (9005).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
- Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
| Type of mounting | snap-in | |
| Width | 22.6 mm | |
| Colour | black | |
| Suitable for | enclosure | |
| Height | 75.26 mm | |
| Material | ABS | |
| Degree of protection (IP) | IP20 | |
| Depth | 36.95 mm | |
| Accessory Type | upper part of housing |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
