1411485 | Phoenix Contact
Flat seal for bulkhead housing, 1411485
Unit Price (€ / pc.)
3.6414 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 1 Week **
Total Price:
3.64 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6414 €
10 pcs.
3.3558 €
50 pcs.
3.0464 €
100 pcs.
2.7489 €
*incl. VAT plus shipping costs
**Subject to prior sale

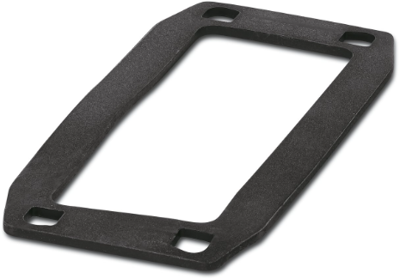

Flat gasket HC-B16-SG-CBK
Replacement flat gasket, for HEAVYCON attachment housing,HC-STA-AL, Design B16, conductive
The technical features of 1411485 from Phoenix Contact at a glance
- Material: NBR, conductive
- Material (in the style of Norm): Not present
- Article description: HC-B16-SG-CBK
- Dimensional standard output: Not relevant
- Number of holes: 1
- Profile abbreviation: Not relevant
- Nominal pressure series: Not relevant
- Surface finish: Not relevant
- Standard number (Form letter): Not relevant
- Nominal width: Not relevant
- Surface protection (in the style of Norm): Not present
- Surface protection: Not relevant
- Nominal dimension of the forming element: Not relevant

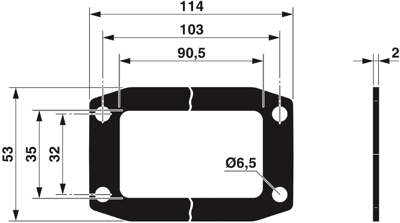

- Length of the fastening distance: 32 mm
- Abbreviation (in the style of Norm): Not relevant
- Hole diameter: 6.5 mm
- Hole spacing in transverse direction: 103 mm
- min. Thickness: 2 mm
Further links to Phoenix Contact 1411485
Under the following links you will find more information about Phoenix Contact 1411485
Technical specifications
| Suitable for | bulkhead housing | |
| Accessory Type | flat seal |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 40169300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
