1414669 | Phoenix Contact
Flat seal for bulkhead housing, 1414669
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Available in 10 days: 18 pcs.
Leadtime: 1 Week **

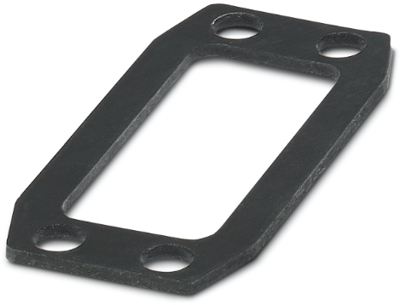

Flat gasket HC-D15-SG-RBK
Replacement flat gasket, for HEAVYCON-EVO attachment housing HC-EVO-D15-BK
The technical features of 1414669 from Phoenix Contact at a glance
- Article description: HC-D15-SG-RBK
- Dimensional standard output: Not relevant
- Number of holes: 1
- Material: NBR
- Material (in the style of Norm): Not present

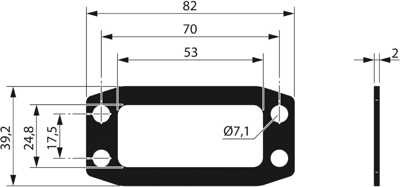

- Hole spacing in transverse direction: 70 mm
- Hole diameter: 7.1 mm
- Abbreviation (in the style of Norm): Not relevant
- Nominal pressure series: Not relevant
- Surface protection (in the style of Norm): Not present
- Nominal dimension of the forming element: Not relevant
- Nominal width: Not relevant
- Standard number (Form letter): Not relevant
- Surface protection: uncoated
- Surface finish: Not relevant
- Length of the fastening distance: 17.5 mm
- Profile abbreviation: Not relevant
- min. Thickness: 2 mm
Further links to Phoenix Contact 1414669
Under the following links you will find more information about Phoenix Contact 1414669
Technical specifications
| Suitable for | bulkhead housing | |
| Accessory Type | flat seal |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
