1424441 | Phoenix Contact

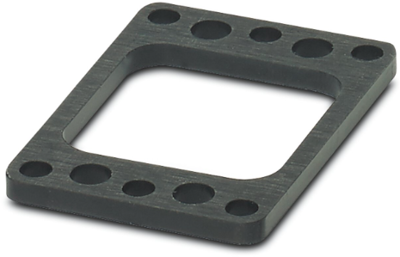

Seal for HC-D7 housing, 1424441
Unit Price (€ / pc.)
2.9512 € *
Available: 0 pcs.
Available in 10 days: 240 pcs.
Leadtime: 1 Week **
Gasket HC-D07-SG-RBK
Replacement gasket for HC-D7-housing
The technical features of 1424441 from Phoenix Contact at a glance
- Article description: HC-D07-SG-RBK
- Dimensional standard output: Not relevant
- Number of holes: 1
- Material: NBR
- Material (in the style of Norm): Not present
- Profile abbreviation: Not relevant
- Surface protection (in the style of Norm): Not present
- Surface protection: uncoated
- Nominal pressure series: Not relevant
- Standard number (Form letter): Not relevant
- Nominal width: Not relevant
- Surface finish: Not relevant
- Nominal dimension of the forming element: Not relevant

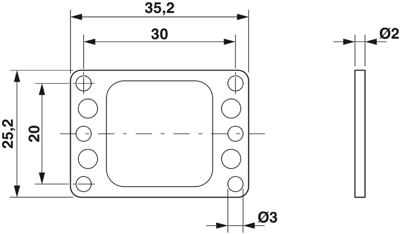

- Length of the fastening distance: 20 mm
- Hole diameter: 3 mm
- Abbreviation (in the style of Norm): Not relevant
- Hole spacing in transverse direction: 30 mm
- min. Thickness: 2.45 mm
Further links to Phoenix Contact 1424441
Under the following links you will find more information about Phoenix Contact 1424441
Technical specifications
| Suitable for | HC-D7 housing | |
| Accessory Type | seal |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
