1661448 | Phoenix Contact
Adapter plate for wall cutouts, 1661448
Unit Price (€ / pc.)
11.9000 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
11.90 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9000 €
10 pcs.
10.9480 €
50 pcs.
9.9603 €
100 pcs.
8.9607 €
*incl. VAT plus shipping costs
**Subject to prior sale

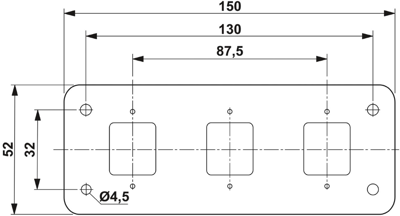

Adapter plate HC-B 24-ADP-3D 7-GY
HEAVYCON Adapter plate with reinforceder wall, 3 Breakthroughs for D7- Cultivation housing; Design B24 to 3xD7, for wall cutouts of the design B24, grey
The technical features of 1661448 from Phoenix Contact at a glance
- Seal available: Yes
- Flammability class of the insulating material (in the style of UL 94): HB
- Color: grey
- Shape of the recess: rectangular
- Width: 52 mm
- Product type designation: Adapter plate
- Length: 150 mm
- Size: B24
- Housing surface finish: Not relevant
- Article description: HC-B 24-ADP-3D 7-GY
- Number of recesses: 3
- Protection class (IP, mounted): IP54
- Adapter plate material: Plastic
Further links to Phoenix Contact 1661448
Under the following links you will find more information about Phoenix Contact 1661448
Technical specifications
| Suitable for | wall cutouts | |
| Accessory Type | adapter plate |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
