1662175 | Phoenix Contact

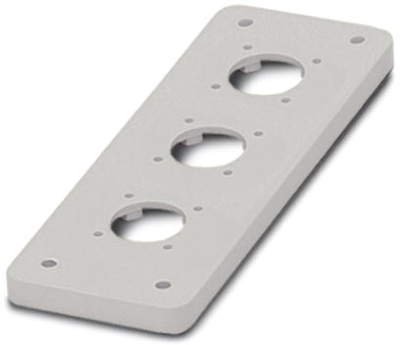

Adapter plate for circular connector, 1662175
As a private customer, you can buy this item as soon as we have it back in stock.
Adapter plate HC-B 24-ADP-3RST-GY
Adapter platen with reinforceder wall, 3 Breakthroughs for Round connector M23; Design B24 at M23 Round connector, for wall cutouts of the design B24, grey
The technical features of 1662175 from Phoenix Contact at a glance
- Adapter plate material: Plastic
- Protection class (IP, mounted): IP54
- Number of recesses: 3
- Article description: HC-B 24-ADP-3RST-GY
- Housing surface finish: Not relevant
- Size: B24
- Length: 150 mm
- Product type designation: Adapter plate
- Width: 52 mm
- Shape of the recess: rund
- Color: grey
- Flammability class of the insulating material (in the style of UL 94): HB
- Seal available: Yes
Further links to Phoenix Contact 1662175
Under the following links you will find more information about Phoenix Contact 1662175
Technical specifications
| Suitable for | circular connector | |
| Accessory Type | adapter plate |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
