1775253 | Phoenix Contact

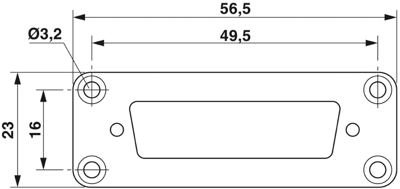

Adapter plate HC-D 15-ADP/1 DSUB 15

D-SUB adapter plate, for assembly with one D-SUB connector, Number of poles 15, housing series HC-D 15-

The technical features of 1775253 from Phoenix Contact at a glance

• Article description: HC-D 15-ADP/1 DSUB 15
• Size: D15
• Housing surface finish: Not relevant
• Number of recesses: 1
• Adapter plate material: Plastic
• Protection class (IP, mounted): Not relevant
• Product Type designation: Adapter plate
• Length: 57 mm
• Flammability class of the insulating material (in the style of UL 94): HB
• Width: 23 mm
• Shape of the recess: D-SUB
• Color: grey
• Seal available: Yes
