1775499 | Phoenix Contact

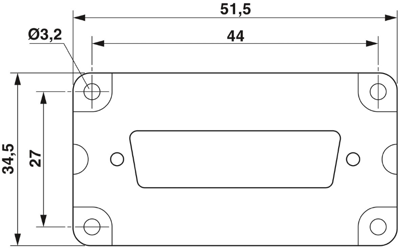

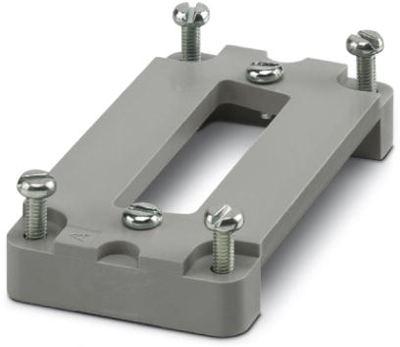

Adapter plate HC-B 10-ADP/1 DSUB 25

D-SUB adapter plate, for assembly with one D-SUB connector, Number of poles 25, housing series HC-B 10-

The technical features of 1775499 from Phoenix Contact at a glance

• Article description: HC-B 10-ADP/1 DSUB 25
• Size: B10
• Housing surface finish: Not relevant
• Number of recesses: 1
• Adapter plate material: Plastic
• Protection class (IP, mounted): Not relevant
• Product Type designation: Adapter plate
• Length: 64.5 mm
• Flammability class of the insulating material (in the style of UL 94): HB
• Width: 34.5 mm
• Shape of the recess: D-SUB
• Color: grey
• Seal available: No
