1775525 | Phoenix Contact

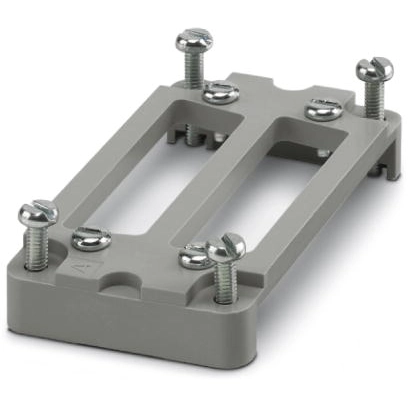

Adapter plate HC-B 16-ADP/2 DSUB 37

D-SUB adapter plate, for assembly with two D-SUB connectors, Number of poles 37, housing series HC-B 16-

The technical features of 1775525 from Phoenix Contact at a glance

• Seal available: No
• Color: grey
• Shape of the recess: D-SUB

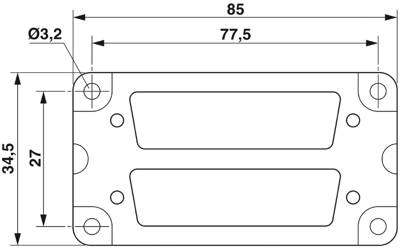

• Width: 34.5 mm
• Flammability class of the insulating material (in the style of UL 94): HB
• Length: 85 mm
• Product Type designation: Adapter plate
• Protection class (IP, mounted): Not relevant
• Adapter plate material: Plastic
• Number of recesses: 2
• Housing surface finish: Not relevant
• Size: B16
• Article description: HC-B 16-ADP/2 DSUB 37
