1652295 | Phoenix Contact

Grommet housing, gray, for RJ45 connector, 1652295

Order No.: 62P5162
EAN: 4017918936174
MPN:
1652295
VS-08-T-G-RJ45/IP20
Series: VS-08
1652295 Phoenix Contact Accessories for Network Connectors
Image may differ
Unit Price (€ / pc.)
7.7350 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7350 €
10 pcs.
7.1162 €
50 pcs.
6.4736 €
100 pcs.
5.8310 €
*incl. VAT plus shipping costs
**Subject to prior sale

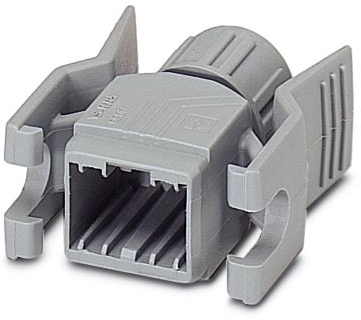

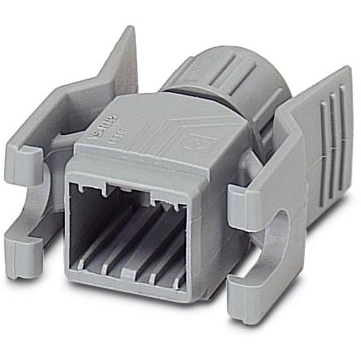

RJ45-Grommet housing VS-08-T-G-RJ45/IP20

RJ45-Grommet housing, IP20, for pin insert VS-08-ST-RJ45, with push-pull interlocking to attachment frame, rotated version, for Factoryline Modular Managed Switches, for cable diameter 5.0 mm...6.5 mm

The technical characteristics of 1652295 from Phoenix Contact at a glance

  • Flammability class of the insulating material (based on UL 94) : V0
  • EMC version available : No
  • Product type designation : VS-08-T-G-RJ45/IP20
  • Thread size cable inlet : Not relevant
  • Corrosion resistance : Not relevant
  • Mounting type of the cable gland : Not relevant
  • Article description : VS-08-T-G-RJ45/IP20
  • Housing surface finish : not applicable
  • Number of cable entries : 1
  • Arrangement of the cable feed : Straight
  • Impact resistance : Not relevant
  • Housing material : Polyamide
  • max. Operating temperature : 80 °C
  • min. Operating temperature : -40 °C

Further links to Phoenix Contact 1652295

You can find more information about Phoenix Contact under the following links 1652295

Technical specifications
Farbe grau
Geeignet für RJ45-Steckverbinder
Montage Frontmontage
Zubehörart Tüllengehäuse
Logistics
Ursprungsland DE
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
