2702007 | Phoenix Contact

I/O module for Axioline F station, Inputs: 4, (W x H x D) 35 x 126.1 x 54 mm, 2702007

Order No.: 64P8430
EAN: 4046356900997
MPN:
2702007
AXL F AI4 I XC 1H
Series: Axioline F
Phoenix Contact
2702007 Phoenix Contact Analog Modules

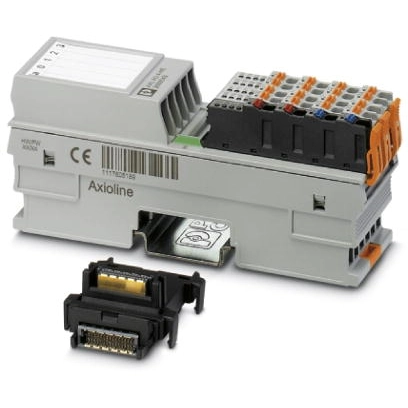

Image may differ
Unit Price (€ / pc.)
482.9258 € *
Available: 0 pcs.
Available in 10 days: 86 pcs.
Leadtime: 2 Weeks **
Total Price:
482.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
482.9258 €

Analog module, 2702007, Phoenix Contact

Axioline F, Analog input module, Analog inputs: 4, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-, 3-, 4-conductor, Transmission speed in the local bus: 100 Mbps, integrated sensor supply, Extreme conditions version, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 4 analog, bipolar input channels for the connection of current signals
  • Simultaneous scanning of all channels by means of simultaneous sampling
  • High crosstalk attenuation between the channels, thanks to separate signal paths
  • Particularly robust against electromagnetic interference
  • Device rating plate stored
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Partially coated PCBs
Technical specifications
Number of analogue inputs 4
Version analog module
Width 35 mm
Suitable for Axioline F station
Height 126.1 mm
Assembly DIN rail
Depth 54 mm
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
