2702072 | Phoenix Contact

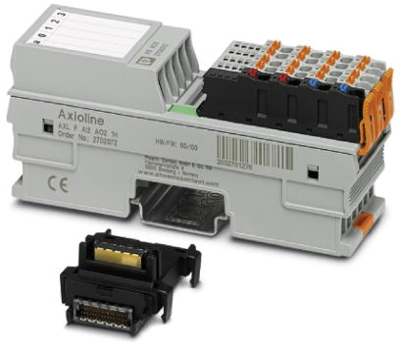

I/O module for Axioline F station, Inputs: 2, Outputs: 2, (W x H x D) 35 x 126.1 x 54 mm, 2702072

Order No.: 64P8428
EAN: 4046356933124
MPN:
2702072
AXL F AI2 AO2 1H
Series: Axioline F
Phoenix Contact
2702072 Phoenix Contact Analog Modules
Image may differ
Unit Price (€ / pc.)
414.5603 € *
Available: 0 pcs.
Available in 10 days: 647 pcs.
Leadtime: 2 Weeks **
Total Price:
414.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
414.5603 €

Analog module, 2702072, Phoenix Contact

Axioline F, Analog I/O module, Analog inputs: 2, 0 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-conductor, Analog outputs: 2 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-conductor, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 2 analog differential input channels
  • 2 analog outputs
  • Process data update < 150 µs
  • Device rating plate stored
Technical specifications
Number of analogue outputs 2
Number of analogue inputs 2
Version analog module
Width 35 mm
Suitable for Axioline F station
Height 126.1 mm
Assembly DIN rail
Depth 54 mm
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
