1411092 | Phoenix Contact

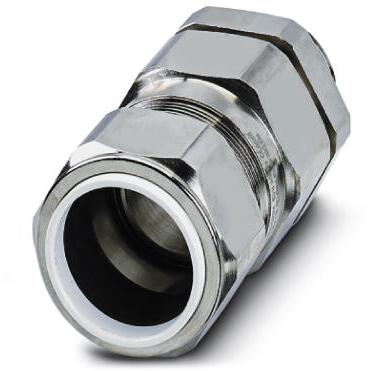

Cable gland, M25, 37.5 mm, Clamping range 18.2 to 26.2 mm, IP66, silver, 1411092
Unit Price (€ / pc.)
51.5151 € *
Available: 0 pcs.
Available in 10 days: 216 pcs.
Leadtime: 1 Week **
Cable gland, 1411092, Phoenix Contact
Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 18.2-26.2 mm, Shielding: yes, Connecting thread: M25x1.5, Color: silver.
Features
- Armor connected via PE cone
- Weatherproof sealing material
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | silber | |
| Gewindegröße | M25 | |
| Länge | 82 mm | |
| Material | Messing, vernickelt | |
| max. Klemmbereich | 26.2 mm | |
| max. Temperatur | 130 °C | |
| min. Klemmbereich | 18.2 mm | |
| min. Temperatur | -60 °C | |
| Schlüsselweite | 37,5 mm | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 74198090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
