1414650 | Phoenix Contact

Cable gland, M40, 43 mm, Clamping range 6.5 to 6.6 mm, IP66, silver, 1414650

Order No.: 62P2001
EAN: 4055626031026
MPN:
1414650
HC-B-GM8X6,5-M40-ET-AL
Series: HC-B
Phoenix Contact
1414650 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
20.8607 € *
Available: 0 pcs.
Available in 10 days: 31 pcs.
Leadtime: 2 Weeks **
Total Price:
20.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
20.8607 €

Cable gland, 1414650, Phoenix Contact

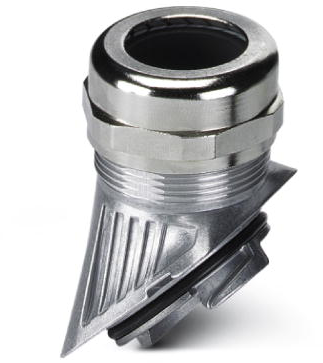

EVO metal cable gland with bayonet locking, size M40, for 8 conductors with 6.5 mm cable diameter.

Technical specifications
Version cable gland
Colour silver
Thread size M40
Material aluminum
max. clamping range 6.6 mm
max. operating temperature 100 °C
min. clamping range 6.5 mm
min. operating temperature -30 °C
spanner size 43 mm
Degree of protection (IP) IP66
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
