1424536 | Phoenix Contact

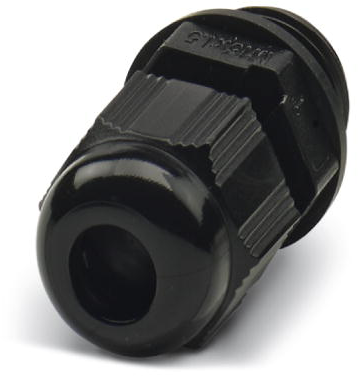

Cable gland, M16, 19 mm, Clamping range 4 to 7 mm, IP67, black, 1424536
Unit Price (€ / pc.)
5.6049 € *
Available: 0 pcs.
Available in 10 days: 1,270 pcs.
Leadtime: 2 Weeks **
Cable gland, 1424536, Phoenix Contact
Cable gland, Material: PA, External cable diameter 4-7 mm, Shielding: no, Connecting thread: M16x1.5, Color: jet black RAL 9005, with pressure compensation element and flat gasket.
Features
- Prevents low pressure forming in the housing
- Resistant to water and dirt
- Reduces the formation of condensation
Technical specifications
| Colour | schwarz | |
| Thread size | M16 | |
| Length | 35.5 mm | |
| Material | PA | |
| max. clamping range | 7 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 19 mm | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
