1424543 | Phoenix Contact

Cable gland, M20, 22 mm, Clamping range 6 to 12 mm, IP68, silver, 1424543

Order No.: 65P2077
EAN: 4055626374482
MPN:
1424543
G-INS-M20-M68N-SNES-S
Series: G-INS
Phoenix Contact
1424543 Phoenix Contact Cable Glands

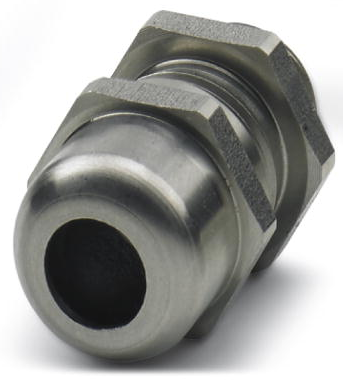

Image may differ
Unit Price (€ / pc.)
35.462 € *
Available: 0 pcs.
Available in 10 days: 324 pcs.
Leadtime: 2 Weeks **
Total Price:
35.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
35.462 €

Cable gland, 1424543, Phoenix Contact

Cable gland, Material: Stainless steel 1.4305, External cable diameter 6-12 mm, Shielding: no, Connecting thread: M20x1.5, Color: silver, with O-ring.

Technical specifications
Version cable gland
Colour silver
Thread size M20
Length 33 mm
Material stainless steel
max. clamping range 12 mm
max. operating temperature 100 °C
min. clamping range 6 mm
min. operating temperature -40 °C
spanner size 22 mm
Degree of protection (IP) IP68
Logistics
Country of origin TR
Customs tariff number 73269098
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
