1854035 | Phoenix Contact

Half cable gland, PG21, 30 mm, Clamping range 11.5 to 15.5 mm, IP67, 1854035

Order No.: 62P5002
EAN: 4017918145941
MPN:
1854035
VC-M-KV-PG21(11,5-15,5)
Series: VC-M
Phoenix Contact
1854035 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
6.6164 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
6.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.6164 €

Half screw connection, 1854035, Phoenix Contact

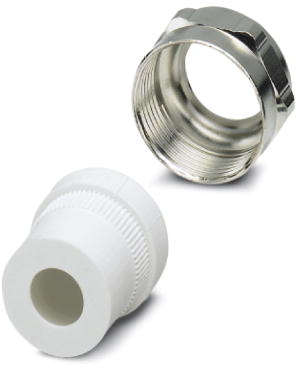

Half screw connection Pg21, Made of metal, Consisting of rubber seal with one hole and one pressure screw, for type 2-4 housings, Cable 11.5-13.5 mm.

Technical specifications
Version half cable gland
Thread size PG21
Length 30 mm
Material metal
max. clamping range 15.5 mm
max. operating temperature 125 °C
min. clamping range 11.5 mm
min. operating temperature -40 °C
spanner size 30 mm
Degree of protection (IP) IP67
Logistics
Country of origin PL
Customs tariff number 74153300
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
