1403846 | Phoenix Contact

Cable connector, 4 pole, straight, 1.0-2.5 mm², cable Ø 9 to 16 mm, IP66/IP68/IP69K, 1403846

Order No.: 62P3525
EAN: 4046356670418
MPN:
1403846
QPD CW 4PE2,5 1X9-16 BK
Series: QPD
1403846 Phoenix Contact Cable Joints

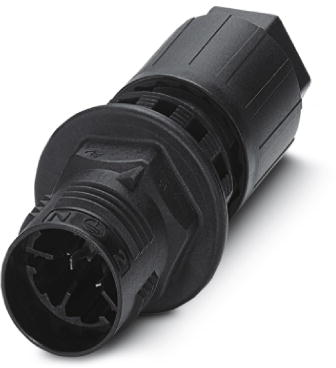

Image may differ
Unit Price (€ / pc.)
16.4815 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
16.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.4815 €

Conductor connector, 1403846, Phoenix Contact

Cable connector panel feed-through, single-sided with QPD nut, Black, 4+PE-pole, 1.0-2.5 mm²/690 V/20 A, for cable diameter of 9-16 mm.

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection
Technical specifications
Version Kabelverbinder
Pin number 4-polig
Design gerade
Connection QUICKON
Cable cross-section 1,0-2,5 mm²
Cable diameter 9 bis 16 mm
Colour schwarz
Degree of protection (IP) IP66/IP68/IP69K
Rated voltage IEC 690 V
Rated voltage UL/CSA 600 V
Rated current IEC 20 A
Rated current UL/CSA 10 A
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
