1403848 | Phoenix Contact

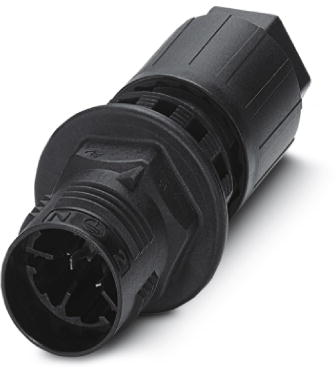

Cable connector, 4 pole, straight, 1.0-2.5 mm², cable Ø 6 to 11 mm, IP66/IP68/IP69K, 1403848
Unit Price (€ / pc.)
16.4815 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Conductor connector, 1403848, Phoenix Contact
Cable connector panel feed-through, single-sided with QPD nut, Black, 4+PE-pole, 1.0-2.5 mm²/690 V/20 A, for cable diameter of 6-11 mm.
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection
Technical specifications
| Anschluss | QUICKON | |
| Ausführung | Kabelverbinder | |
| Bauform | gerade | |
| Farbe | schwarz | |
| Kabeldurchmesser | 6 bis 11 mm | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Nennspannung IEC | 690 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 20 A | |
| Nennstrom UL/CSA | 10 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP66/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
