1411417 | Phoenix Contact
PHOENIX CO 1411417
Unit Price (€ / pc.)
75.4222 € *
Available: 0 pcs.
Available in 10 days: 198 pcs.
Leadtime: 1 Week **
T distributor, 1411417, Phoenix Contact

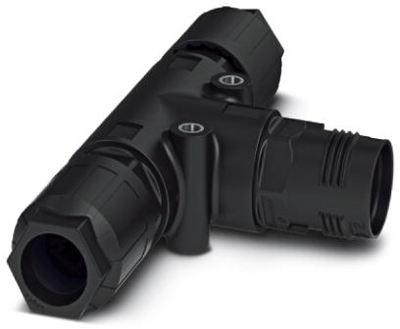

QUICKON T-distributor, Black, 4+PE-pole, 2.5-6.0 mm²/690 V/40 A, for cable diameter of 12-20 mm, with two QUICKON nuts
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Ausführung | T-Adapter | |
| Bauform | T-Form | |
| Farbe | schwarz | |
| Kabeldurchmesser | 12 bis 20 mm | |
| Leiterquerschnitt | 2,5-6,0 mm² | |
| Nennspannung IEC | 690 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 40 A | |
| Nennstrom UL/CSA | 20 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP66/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
