1414412 | Phoenix Contact
Cable connector, 8 pole, straight, 0.14-0.34 mm², cable Ø 5 to 9.7 mm, IP65/IP67, 1414412
Unit Price (€ / pc.)
51.1819 € *
Available: 0 pcs.
Leadtime: On Request **

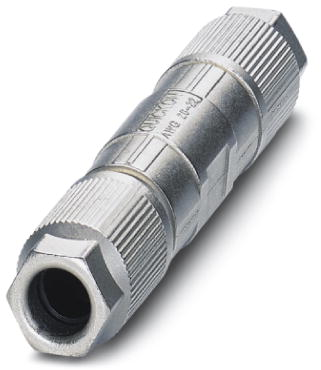

Conductor connector, 1414412, Phoenix Contact
Cable connector, Ethernet CAT6A (10 Gbps), 8-pole, Halogen-free, Shielded, Insulation displacement connection, Housing material: zinc die-cast, Nickel-plated, Outer cable diameter of 5-9.7 mm
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Safe use in the field, thanks to a high degree of protection
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference

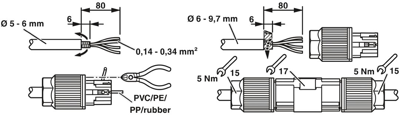

- Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Ausführung | Kabelverbinder | |
| Bauform | gerade | |
| Farbe | silber | |
| Kabeldurchmesser | 5 bis 9,7 mm | |
| Leiterquerschnitt | 0,14-0,34 mm² | |
| Nennspannung IEC | 50 V | |
| Polzahl | 8-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
