1414612 | Phoenix Contact

PHOENIX CO 1414612

Order No.: 61P8256
EAN: 4055626029597
MPN:
1414612
SACC-CC-8QO-0,5 SH
Series: SACC-CC
Phoenix Contact

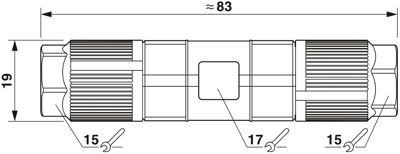

1414612 Phoenix Contact Cable Joints Image 1

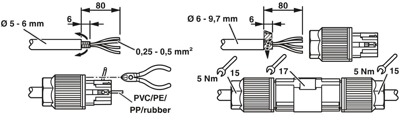

1414612 Phoenix Contact Cable Joints Image 2

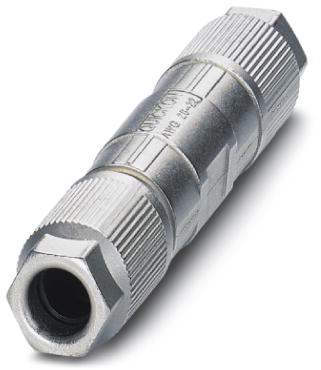

1414612 Phoenix Contact Cable Joints Image 3
Image may differ
Unit Price (€ / pc.)
49.2422 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
49.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
49.2422 €

Conductor connector, 1414612, Phoenix Contact

Cable connector, 8-pole, Halogen-free, Shielded, Insulation displacement connection, Housing material: zinc die-cast, Nickel-plated, Outer cable diameter of 5-9.7 mm

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission – 360° shielding in environments with electromagnetic interference
  • Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Technical specifications
Connection IDC connection
Version cable connector
Design straight
Colour silver
Cable diameter 5 to 9.7 mm
Cable cross-section 0.14-0.5 mm²
Rated voltage IEC 30 V
Pin number 8 pole
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
