1414711 | Phoenix Contact
PHOENIX CO 1414711
Unit Price (€ / pc.)
46.5528 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

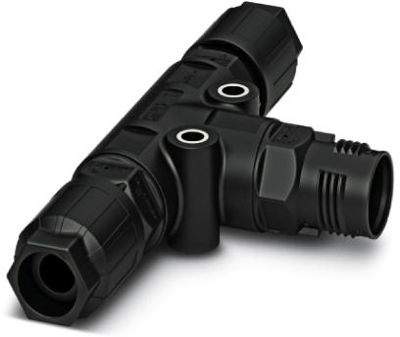

T distributor, 1414711, Phoenix Contact
T distributor, QUICKON connection, Number of positions: 2+PE, 0.5-1.5 mm², 690 V, 17.5 A, Black, With two QUICKON nuts, External cable diameter: 5-9.5 mm
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Ausführung | T-Adapter | |
| Bauform | T-Form | |
| Farbe | schwarz | |
| Kabeldurchmesser | 5 bis 9,5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennspannung IEC | 690 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 17.5 A | |
| Nennstrom UL/CSA | 8 A | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP66/IP68/IP69K |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
